What is Different About Self-Aligning Bearings vs. Basic Bearings?
Self-aligning ball bearings are a specialized type of bearing designed to accommodate misalignment betwee
n the shaft and housing. Unlike basic bearings, which require precise alignment to function correctly, self-aligning bearings can adjust themselves to compensate for minor angular misalignments. This unique feature makes them ideal for applications where shaft deflection or mounting errors are common.
Basic bearings, such as deep groove ball bearings or cylindrical roller bearings, typically have limited tolerance for misalignment. When subjected to angular misalignment, these basic bearings can experience increased friction and wear, leading to premature failure. In contrast, self-aligning ball bearings maintain smooth operation even when there is a slight deviation in alignment, thereby enhancing the reliability and lifespan of machinery.
Construction of Self-Aligning Ball Bearings

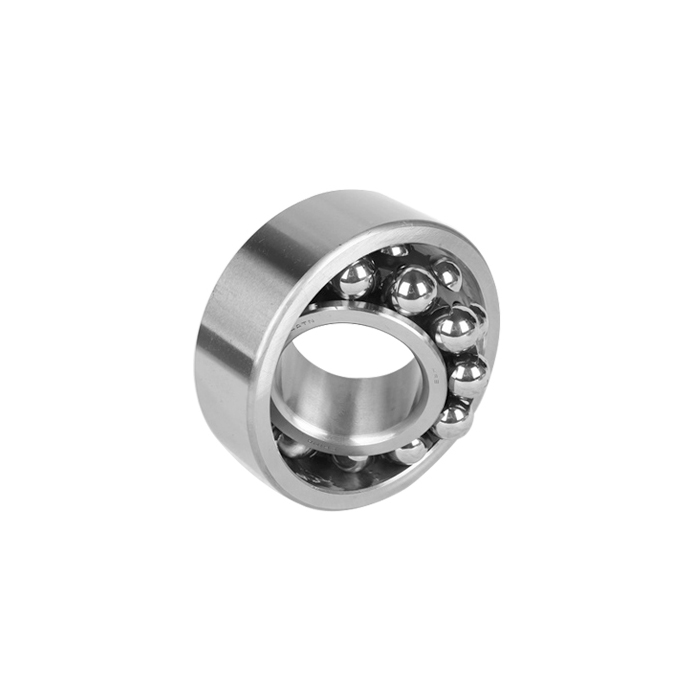

The construction of self-aligning ball bearings sets them apart from other types of bearings. These bearings consist of two rows of balls that run on a common spherical outer raceway. The inner ring has two raceways that are inclined at an angle relative to the bearing axis. This design allows the inner ring and balls to rotate freely while accommodating angular misalignment.
Key components include:
Inner Ring: Features two raceways for the balls.
Outer Ring: Has a spherical raceway that matches the curvature of the balls.
Balls: Arranged in two rows between the inner and outer rings.
Cage: Keeps the balls evenly spaced and reduces friction.
This construction enables self-aligning ball bearings to handle both radial loads (perpendicular to the shaft) and axial loads (parallel to the shaft), making them versatile for various industrial applications.
Advantages
Self-aligning ball bearings offer several advantages over basic bearing types:
Tolerance for Misalignment: The primary advantage is their ability to tolerate angular misalignment without compromising performance.
Reduced Friction: The design minimizes friction between moving parts, resulting in lower operating temperatures and extended bearing life.
Versatility: Suitable for applications with varying load directions due to their ability to handle both radial and axial loads.
Ease of Maintenance: Their robust construction reduces maintenance requirements compared to other bearing types prone to wear under misaligned conditions.
Enhanced Reliability: By compensating for alignment errors, these bearings reduce the risk of machinery downtime caused by premature bearing failure.
Self-Aligning Bearing Installation
Proper installation is crucial for maximizing the performance and lifespan of self-aligning ball bearings:
Preparation:
Ensure all components are clean and free from contaminants.
Check shafts and housings for any signs of damage or wear.
Alignment Check:
Although self-aligning ball bearings can tolerate some misalignment, it’s essential to minimize initial misalignment during installation.
Use precision tools like dial indicators or laser alignment systems if necessary.
Mounting Methods:
For smaller sizes, press fitting may be sufficient.
Apply appropriate lubrication based on manufacturer recommendations.
Regularly check lubricant levels during operation as part of routine maintenance.
Final Inspection:
After installation, rotate the shaft manually to ensure smooth movement without excessive resistance or noise.
Perform a trial run under low load conditions before full-scale operation.
By following these steps carefully during installation, you can ensure optimal performance from your self-aligning ball bearings while minimizing potential issues related to improper setup.
